AES 2040 UF10

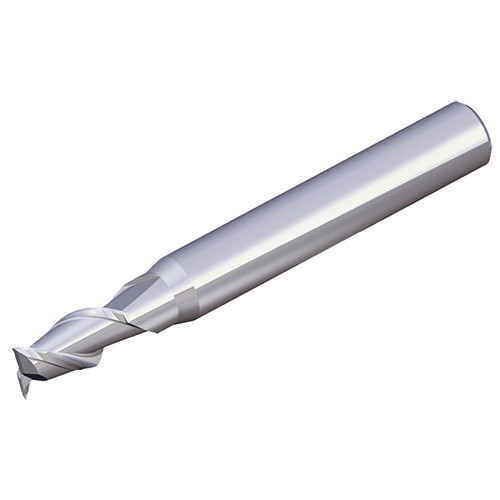

2 Flute solid carbide end mills of medium length type for aluminum machining
Price: Log in For Price

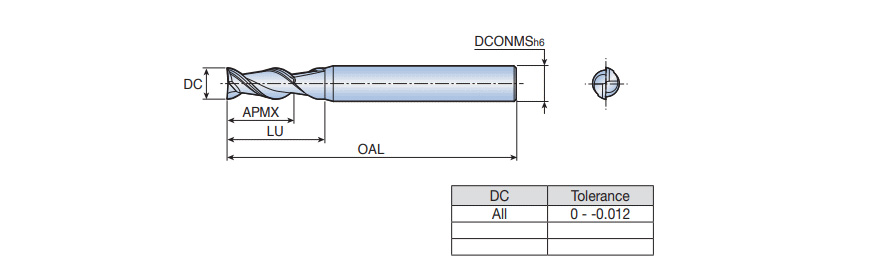

| Cutting Diameter (DC) | 4 mm | Forma | Square |
| Connection Diameter Machine Side (DCONMS) | 6 mm | Usable Length (LU) | 15 mm |
| Depth of Cut Maximum (APMX) | 12 mm | Applicable Material | | Steel | Stainless Steel | Aluminum / Non-Ferrous Materials | |
| Overall Length (OAL) | 47 mm | Application | | Drill Mill | Helical Interpolation | Rampdown | Shouldering | Slotting | Solid Carbide End Mills | Step down machining | |
| Cutting Edge Material | Carbide | Grade | UF10 |
| Coating | Uncoated | Body Material | Carbide |
| Flute Count (NOF) | 2 | Measurement Type | Metric |
| Flute Helix Angle (FHA) | 45 Degrees | Unit | M |
| Shank Type | Round |
Product Features
| Family Description | 2 Flute solid carbide end mills of medium length type for aluminum machining | FamilyName | AES 2 |
| COO | S.KOREA | BrandName | Taegutec |
Shipping Info
Weight per item
0.0170
Name
Square & Corner Radius End Mills
FamilyName
AES 2
BrandName
Taegutec
