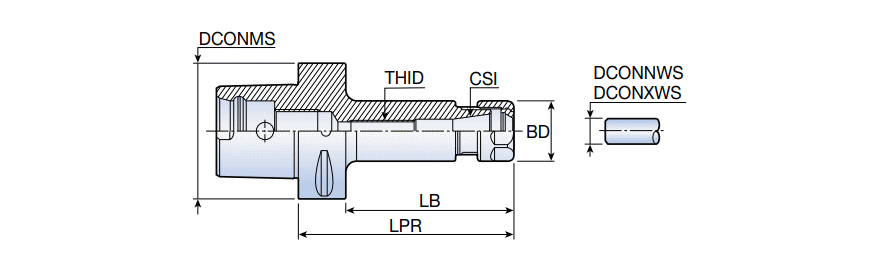

| Connection Size (CSI) | ER20 | Nose Length | 138 mm |
| Body Diameter (BD) | 34 mm | Connection Diameter Minimum Workpiece Side (DCONNWS) | 1 mm |
| Body Length Maximum (LBX) | 160 mm | Connection Diameter Maximum Workpiece Side (DCONXWS) | 13 mm |
| Connection Diameter Machine Side (DCONMS) | 63 mm | Measurement Type | Metric |
| Connection Thread Nominal Size Machine Side (THSZMS) | M12 | Body Material | Steel |
| Shank Length (LS) | 160 mm | Unit | M |

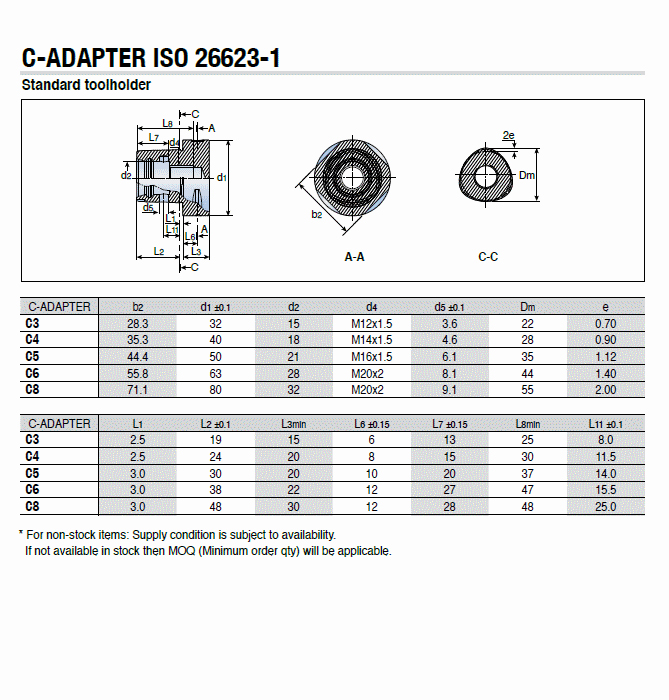

| Application | | ISO 26623 1 C ADAPTER | |
Product Features

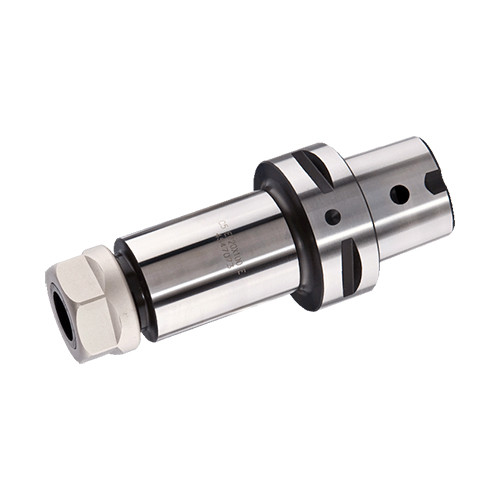

| Family Description | DIN 6499 ER collet chucks with C-ADAPTER (ISO 26623-1) | FamilyName | C-ER |
| COO | ISRAEL | BrandName | Taegutec |
Shipping Info
Weight per item
1.5000
Name
Collet Chucks
FamilyName
C-ER
BrandName
Taegutec
