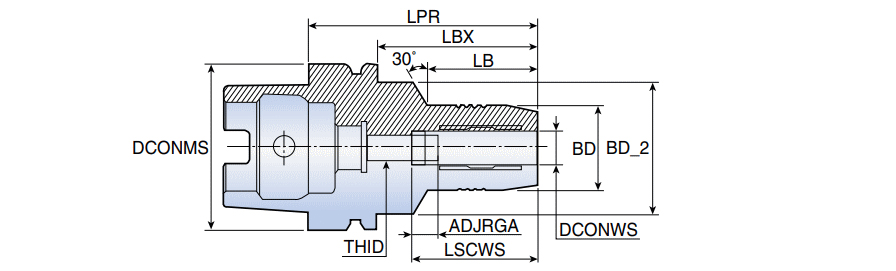

| Body Length Maximum (LBX) | 10 mm | Nose Diameter | 60 mm |
| Connection Diameter Workpiece Side (DCONWS) | 20 mm | Application | | HSK DIN 69893 | |
| Body Diameter (BD) | 43 mm | Nose Length | 29 mm |
| Protruding Length (LPR) | 90 mm | Measurement Type | Metric |
| Clamping Length Workpiece Side (LSCWS) | 52.5 mm | Body Material | Steel |
| Shank Size (SS) | 50 mm | Unit | M |
Product Features
| Family Description | Hydraulic chucks with HSK DIN 69893 form A taper shanks | FamilyName | HSK A-THC (Hydraulic) |
| COO | S.KOREA | BrandName | Taegutec |
Shipping Info
Weight per item
1.1700
Name

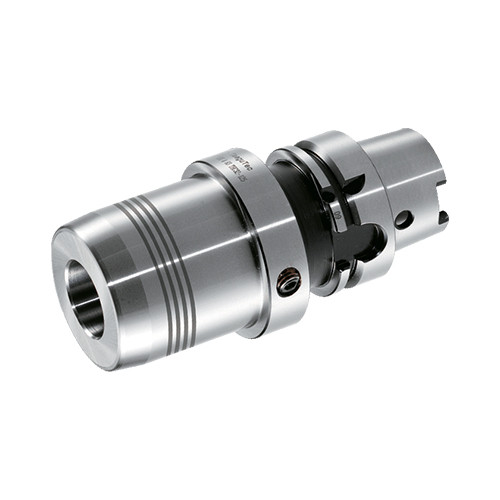

Hydraulic Holders
FamilyName
HSK A-THC (Hydraulic)
BrandName
Taegutec
