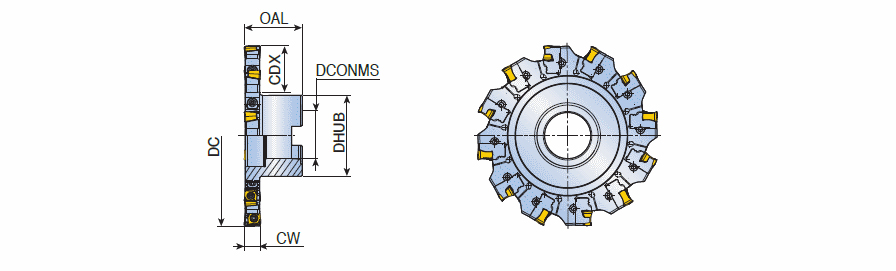

| Cutting Diameter (DC) | 250 mm | Flute Count (NOF) | 18 |
| Peripheral Effective Cutting Edge Count (ZEFP) | 9 Tooth | Overall Length (OAL) | 50 mm |
| Cutting Depth Maximum (CDX) | 55 mm | Application | | Bottom Shouldering | Side Slotting | T Slotting | |

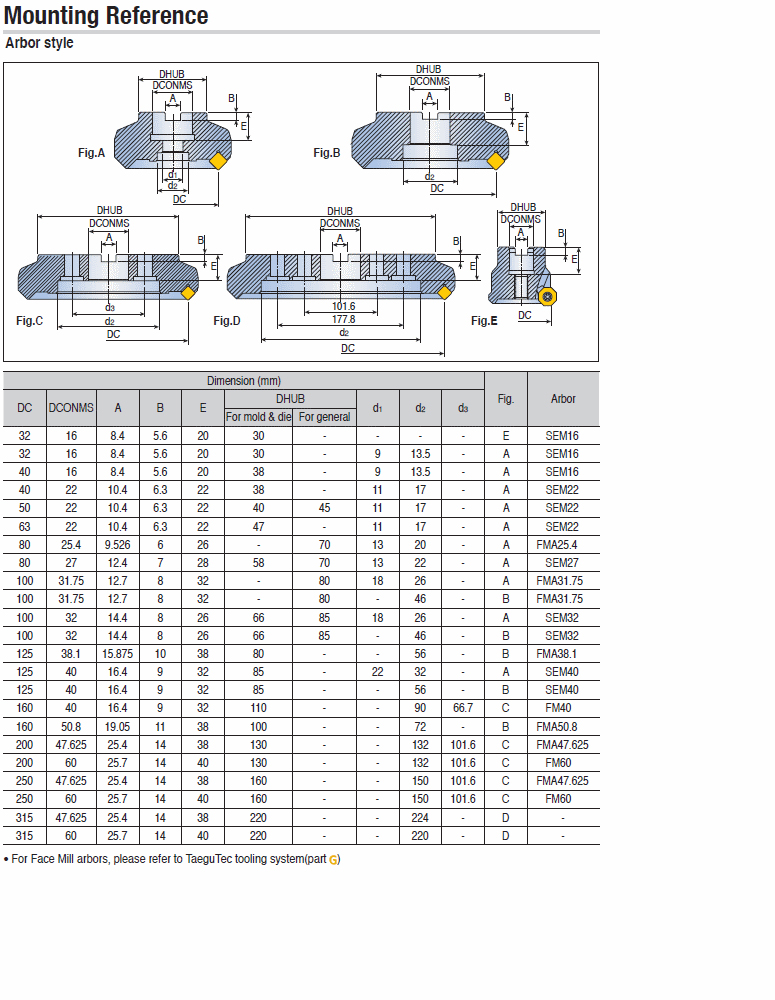

| Connection Diameter Machine Side (DCONMS) | 60 mm | Arbor Style | C |
| Hub Diameter (DHUB) | 130 mm | Measurement Type | Metric |
| Cutting Width Maximum (CWX) | 17 mm | Body Material | Steel |
| Cutting Width Minimum (CWN) | 14 mm | Unit | M |
Product Features
| Family Description | Adjustable slotting cutters with ZNHU inserts in flange type | FamilyName | TSM-FF-S/W-ZN08/11/14 |
| Remarks | Cutters are set at the minimum width of cut range, unless specific width is not ordered | BrandName | Taegutec |
| COO | S.KOREA |
Shipping Info
Weight per item
7.1350
Name

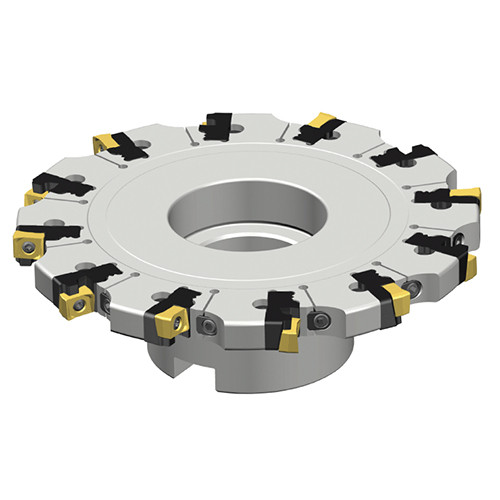

Disc w/Hole Indexable Slotting Cutters
FamilyName
TSM-FF-S/W-ZN08/11/14
BrandName
Taegutec
