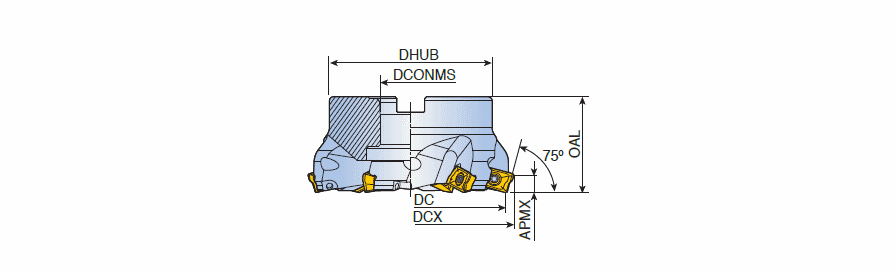

| Cutting Diameter (DC/DCX) | 80 mm | Master Insert Identification (MIID) | APKT 1705 PER-EM |
| Cutting Diameter (DC) | 87.82 mm | Body Material | Steel |
| Cutting Item Count (CICT) | 5 | Application | | Facing | |
| Depth of Cut Maximum (APMX) | 3.9 mm | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 25.4 mm | Unit | M |
| Overall Length (OAL) | 50 mm |
Product Features

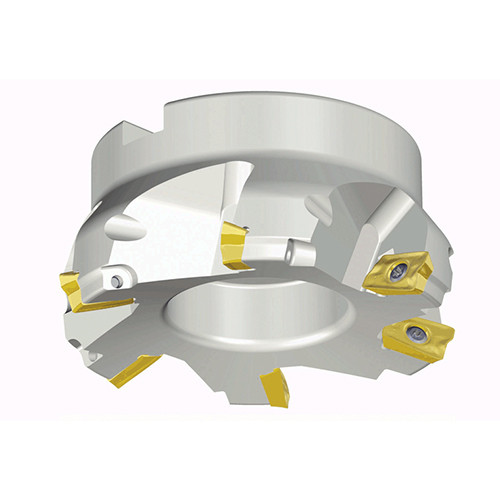

| Family Description | 75° Face mills using other corners of APKT 17 inserts | FamilyName | TFM75AP-R-17 |
| Remarks | Cutter for the other corners of APKT 17 inserts | BrandName | Taegutec |
| COO | S.KOREA |
Shipping Info
Weight per item
1.6700
Name
Indexable Face Mills
FamilyName
TFM75AP-R-17
BrandName
Taegutec
