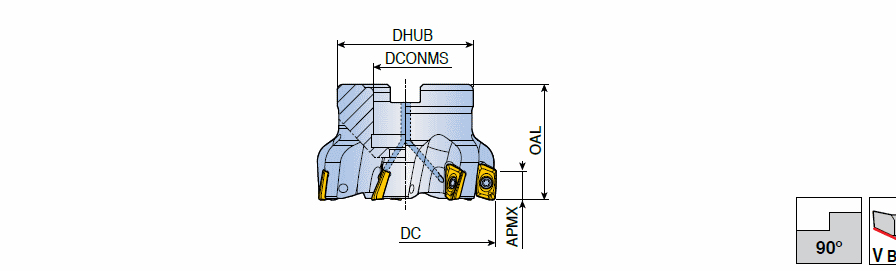

| Cutting Diameter (DC/DCX) | 50 mm | Hub Diameter (DHUB) | 45 mm |
| Cutting Diameter (DC) | 50 mm | Master Insert Identification (MIID) | AVKT 1004 PER-M |
| Cutting Item Count (CICT) | 5 | Body Material | Steel |
| Depth of Cut Maximum (APMX) | 10 mm | Application | | Facing | Helical Interpolation | High Feed Milling | Profiling | Rampdown | Shouldering | Slotting | Step down machining | |
| Connection Diameter Machine Side (DCONMS) | 22 mm | Measurement Type | Metric |
| Overall Length (OAL) | 10 mm | Unit | M |
Product Features

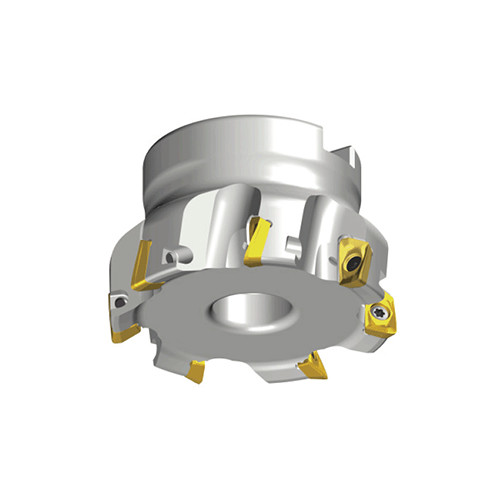

| Family Description | 90° Face mills with AVK(C)T inserts for shoulder milling | FamilyName | TFM90AV-R-10 |
| Remarks | When using the "AVKT 1004R HF" insert, the cutter body needs to be modified to a corner radius of 3.0 mm When using "AVKT 10″ insert with a corner radius of 2.0 mm or bigger, the cutter body corner radius should be adjusted to insert 'R' +0.2mm | BrandName | Taegutec |
| COO | S.KOREA |
Shipping Info
Weight per item
0.4800
Name
Indexable Face Mills
FamilyName
TFM90AV-R-10
BrandName
Taegutec
