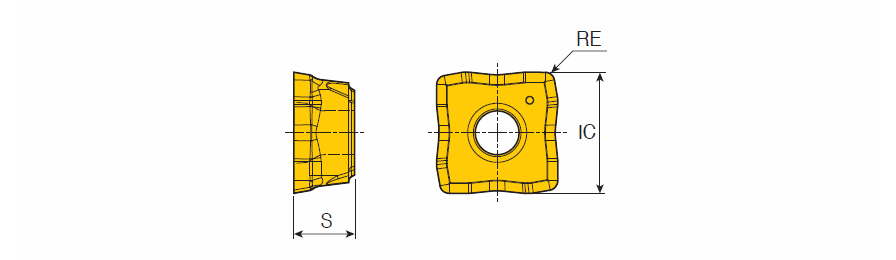

| Insert Thickness (S) | 3.97 mm | Applicable Material | | Cast Iron | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | |
| Inscribed Circle Diameter (IC) | 9.2 mm | Cutting Edge Material | Carbide |
| Corner Radius (RE) | 0.8 mm | Measurement Type | Metric |
| Coating | Uncoated | Body Material | Carbide |
| Grade | K10 | Unit | M |
| Application | | Drilling | Hole Making Inserts | |
Product Features
| Family Description | Unique economical 4-corner TOP DRILL inserts for aluminum applications | COO | S.KOREA |
Shipping Info
Weight per item
0.0042
