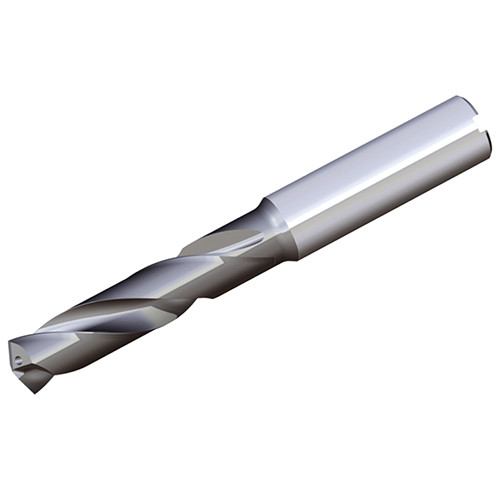

NHD 034-023-06 PI5 TT9030
Solid carbide drills with coolant holes and drilling depth 4-5xD for general purpose
Price: Log in For Price

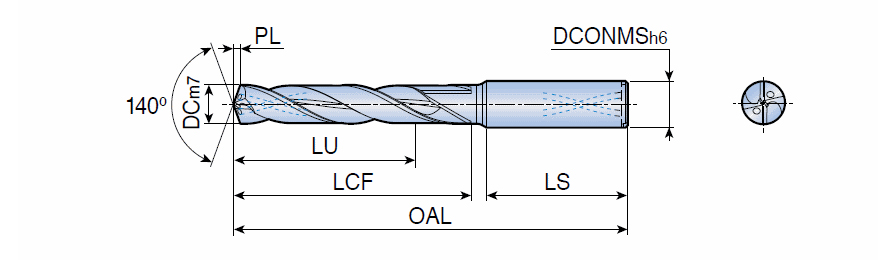

| Drill Bit Size / Cutting Diameter (DC) | 3.4 mm | Cutting Edge Material | Carbide |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 3.4 mm | Grade | TT9030 |
| Coating | TiAlN | Measurement Type | Metric |
| Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | | Usable Length (LU) | 23 mm |
| Application | | Drilling | Tools for Swiss Machines | | Length Chip Flute (LCF) | 29 mm |
| Connection Diameter Machine Side (DCONMS) | 6 mm | Overall Length (OAL) | 66 mm |
| Point Length (PL) | 0.5 mm | Body Material | Carbide |
| Shank Length (LS) | 34 mm | Unit | M |
Product Features
| Family Description | Solid carbide drills with coolant holes and drilling depth 4-5xD for general purpose | COO | S.KOREA |
Shipping Info
Weight per item
0.0175
