ST 22X 75 ER16 MF D

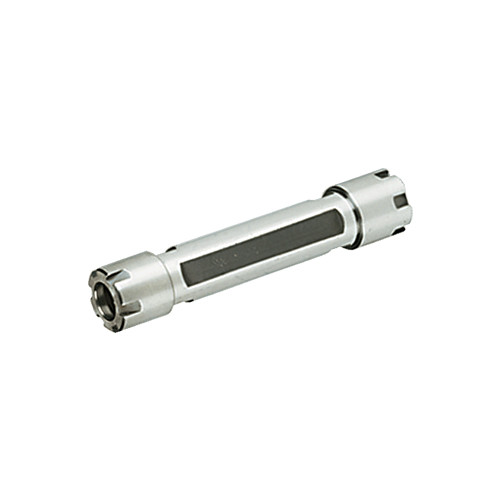

Double-ended mini ER collet chucks with straight shank and flat area for Swiss type CNC lathes
Price: Log in For Price

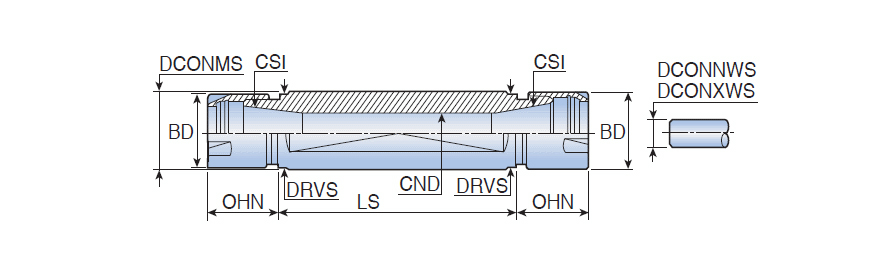

| Connection Size (CSI) | ER16 | Connection Diameter Minimum Workpiece Side (DCONNWS) | 0.5 mm |
| Body Diameter (BD) | 22 mm | Connection Diameter Maximum Workpiece Side (DCONXWS) | 10 mm |
| Body Length Maximum (LBX) | 28 mm | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 22 mm | Body Material | Steel |
| Shank Length (LS) | 75 mm | Unit | M |
| Application | | Straight ST | |
Product Features
| Family Description | Double-ended mini ER collet chucks with straight shank and flat area for Swiss type CNC lathes | FamilyName | ST-ER-MF D |
| Remarks | MF: Mini flat double | BrandName | Taegutec |
| COO | ISRAEL |
Shipping Info
Weight per item
0.4200
Name
Collet Chucks
FamilyName
ST-ER-MF D
BrandName
Taegutec
