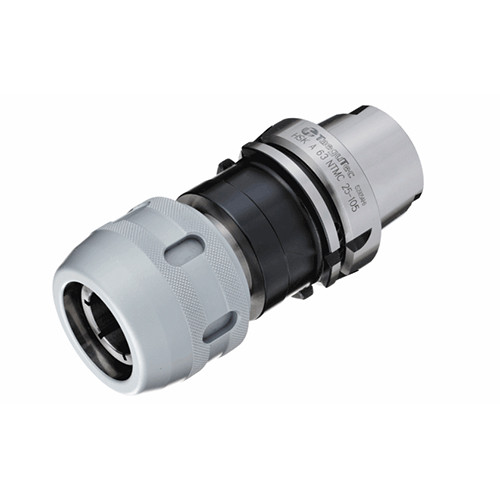

HSK A 63 NTMC 25-105
Milling chucks with HSK DIN69893 Form A Taper shank with coolant hole
Price: Log in For Price

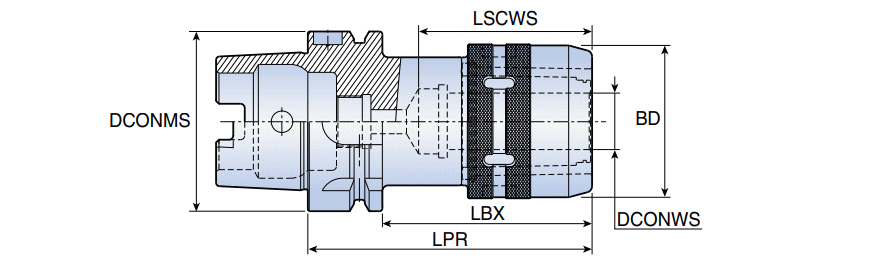

| Connection Diameter Machine Side (DCONMS) | 63 mm | Application | | HSK DIN 69893 | |
| Body Diameter (BD) | 62 mm | Measurement Type | Metric |
| Protruding Length (LPR) | 105 mm | Body Material | Steel |
| Connection Diameter Workpiece Side (DCONWS) | 25 mm | Clamping Length Workpiece Side (LSCWS) | 77 mm |
| Shank Type | Round | Unit | M |
Product Features
| Family Description | Milling chucks with HSK DIN69893 Form A Taper shank with coolant hole | FamilyName | HSK A-NTMC (Milling Chuck) |
| COO | S.KOREA | BrandName | Taegutec |
Shipping Info
Weight per item
1.8600
Name
Milling Chucks
FamilyName
HSK A-NTMC (Milling Chuck)
BrandName
Taegutec
