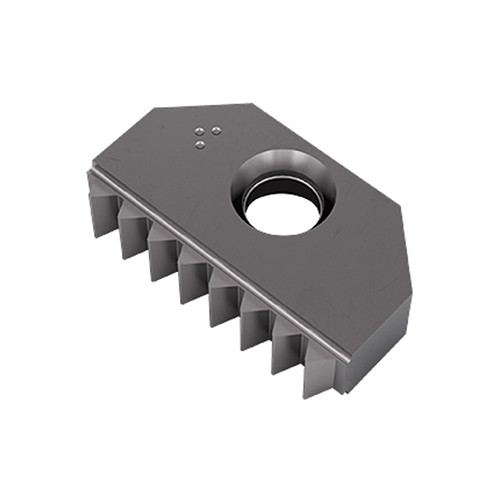

TTMT30 16 PG TT9030
External & internal PG full profile thread milling inserts (DIN 40430) for electrical connectors
Price: Log in For Price

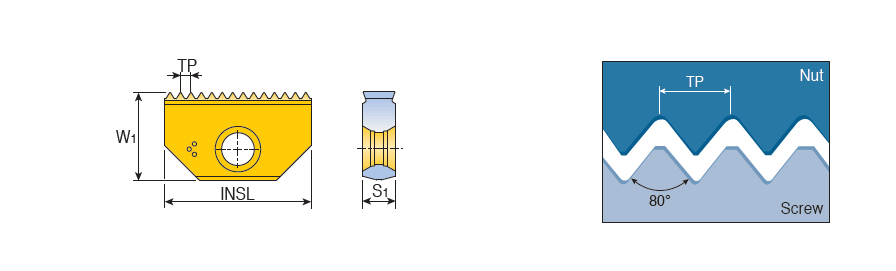

| Threads per Inch (TPI) | 16 | Thread Designation Outside (THOD) | PG36,42,48 |
| Insert Length (INSL) | 30 mm | Cutting Edge Material | Carbide |
| Insert Width (W1) | 16.7 mm | Coating | TiAlN |
| Insert Thickness Total (S1) | 5.6 mm | Measurement Type | Metric |
| Application | | External Thread Milling | Internal Thread Milling | | Body Material | Carbide |
| Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | | Unit | M |
| Grade | TT9030 |
Product Features
| Family Description | External & internal PG full profile thread milling inserts (DIN 40430) for electrical connectors | COO | ISRAEL |
| Remarks | The same insert for external and internal threading |
Shipping Info
Weight per item
0.0390
