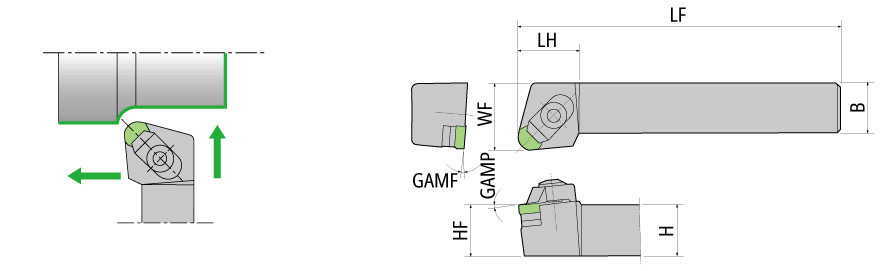

| Shank Height (H) | 32 mm | Rake Angle Axial (GAMP) | 6.0 deg |
| Shank Width (B) | 25 mm | Rake Angle Radial (GAMF) | 6.0 deg |
| Functional Length (LF) | 160 mm | Body Material | Steel |
| Head Length (LH) | 30 mm | Measurement Type | Metric |
| Functional Width (WF) | 30 mm | Unit | M |
| Application | | For Round insert | |
Product Features
| COO | Japan | BrandName | NTK |
| FamilyName | C55 Type toolholder |
Shipping Info
Weight per item
1.0048
Name
General Indexable Turning Tools
FamilyName
C55 Type toolholder
BrandName
NTK
