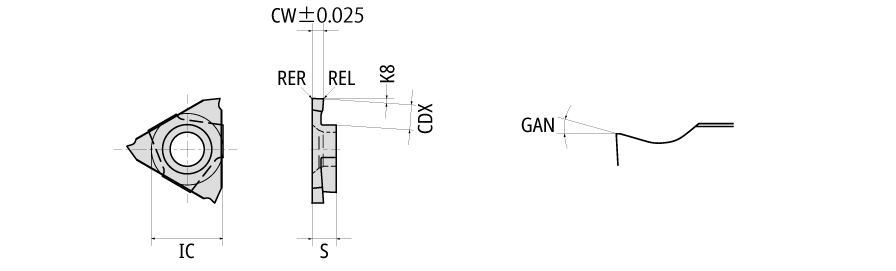

| Cutting Width (CW) | 1.2 mm | Grade | QM3 |
| Corner Radius (RE) | 0 mm | Cutting Edge Material | Carbide |
| Cutting Depth Maximum (CDX) | 2 mm | Application | | Inserts for miniature | |
| Insert Thickness (S) | 3.18 mm | Measurement Type | Metric |
| Inscribed Circle Diameter (IC) | 9.525 mm | Body Material | Carbide |
| Insert Rake Angle (GAN) | 14 Degrees | Unit | M |
| Coating | TiCN |
Product Features
| COO | Japan | BrandName | NTK Cutting Tools |
| FamilyName | GTMX32 type insert |
Shipping Info
Weight per item
0.0041
Name

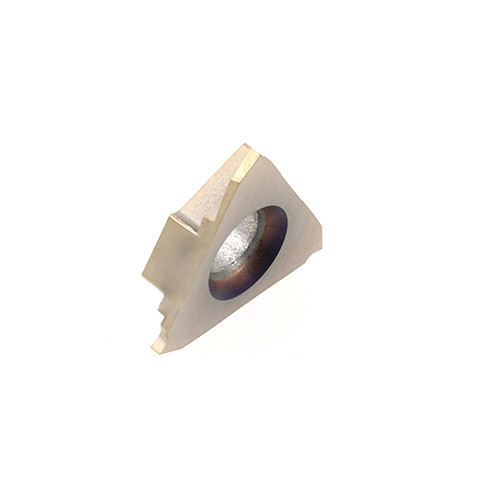

Groove/Turn Indexable Inserts
FamilyName
GTMX32 type insert
BrandName
NTK Cutting Tools
