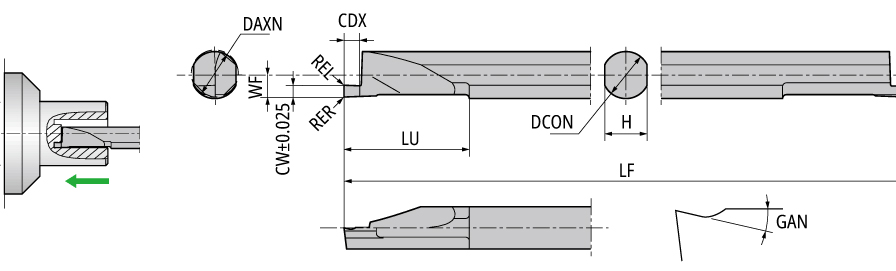

| Connection Diameter Machine Side (DCONMS) | 8 mm | Usable Length (LU) | 16 mm |
| Minimum Bore Diameter (DMIN) | 8 mm | Shank Height (H) | 7.3 mm |
| Functional Length (LF) | 80 mm | Body Material | Carbide |
| Coating | TiCN | Cutting Edge Material | Carbide |
| Grade | TM4 | Measurement Type | Metric |
| Application | | Inserts for miniature | | Cutting Width (CW) | 3 mm |
| Cutting Depth Maximum (CDX) | 3.2 mm | Unit | M |
| Functional Width (WF) | 3.8 mm |
Product Features
| COO | Japan | BrandName | NTK |
| FamilyName | SFG Face grooving insert bar |
Shipping Info
Weight per item
0.0587
Name
Solid Boring Bars
FamilyName
SFG Face grooving insert bar
BrandName
NTK
